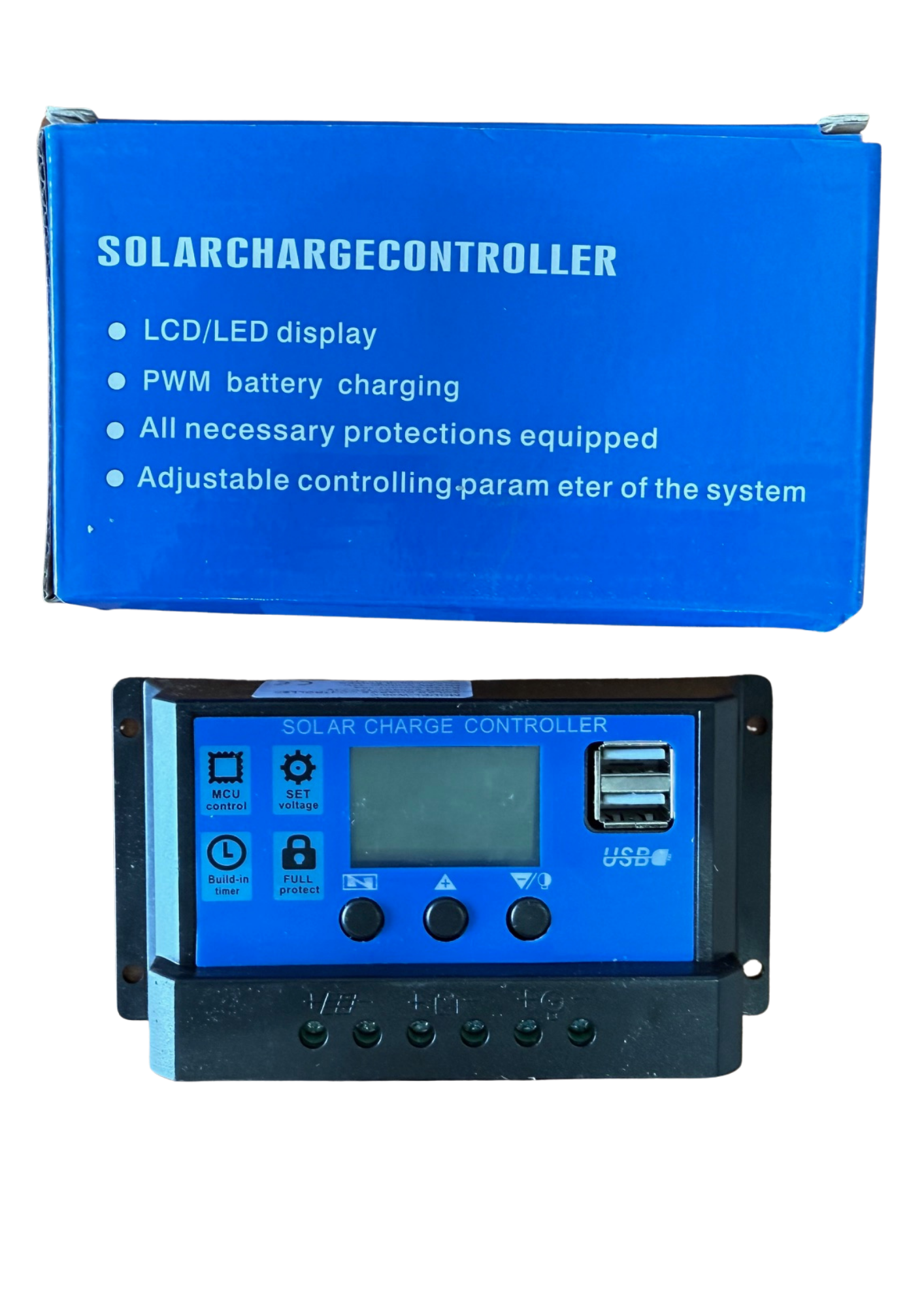

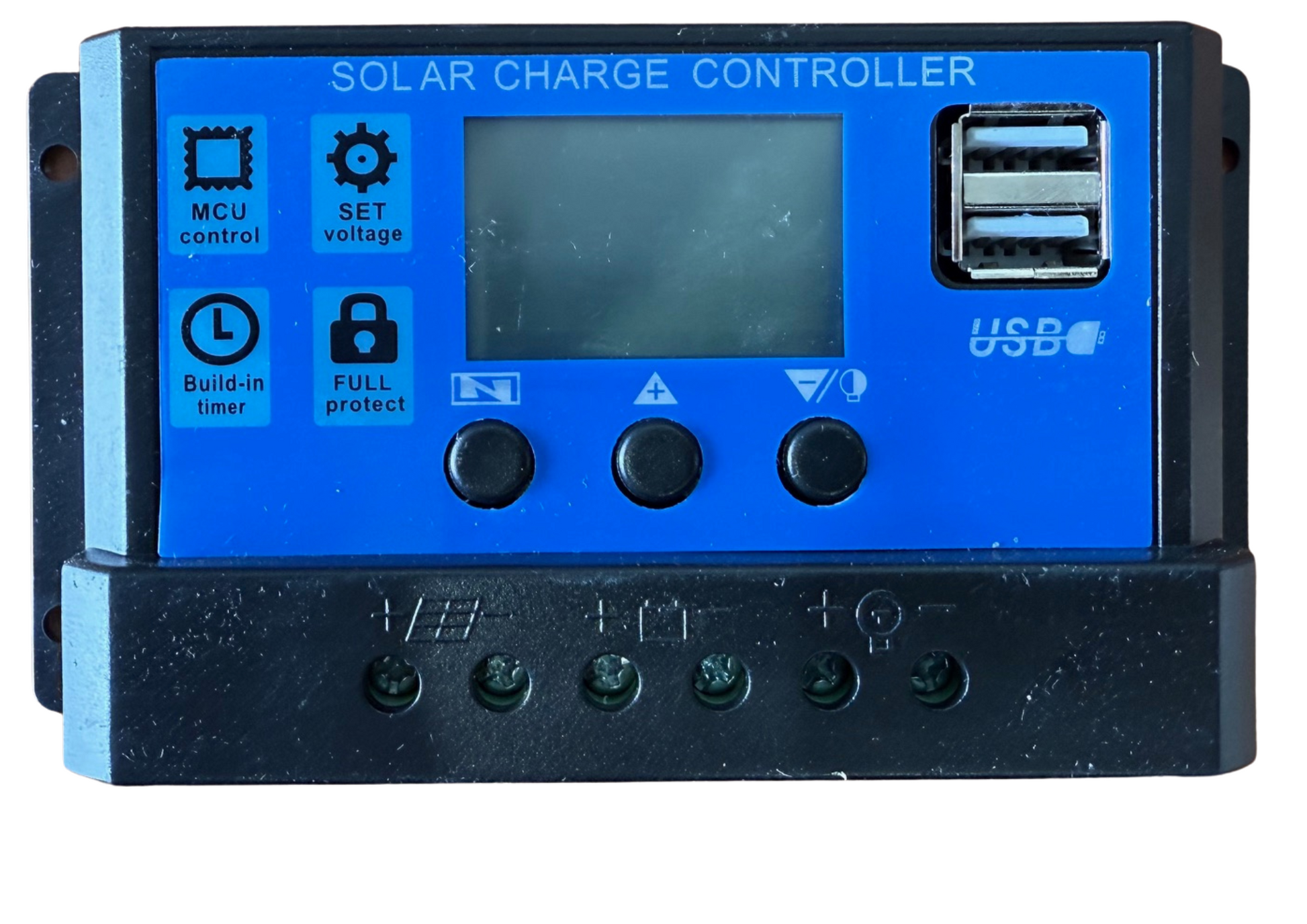

Solar Panel Regulator Charge Controller 12/24v 30A
Solar Panel Regulator Charge Controller 12/24v 30A
Regular price
$29.00
Regular price
Sale price
$29.00
Unit price
/
per
Tax included.
Couldn't load pickup availability
- Solar Panel 12V/24V 10A/20A/30A
- Build-in industrial micro controller.
- One-key setting, auto memory function. digital display,
- 4-stage PWM charge management.
- There are Build-in short-circuit protections, open-circuit protections, reverse protections, over-load protections
- reverse current protections, low heat productions.
- With double USB ports charge
- The Regulator is only suitable for lead acid batteries:
- Max. PV Input Power: 30A: 390W (12V), 780W (24V)
- Safety Instructions:
- Make sure your battery has enough voltage for the controller to recognize the battery type before first installation.
- The battery cable should be as short as possible to minimize loss.
- The regulator is only suitable for lead acid batteries.
- The charge regulator is only suitable for regulating solar modules. Never connect another charging source to the charge regulator.

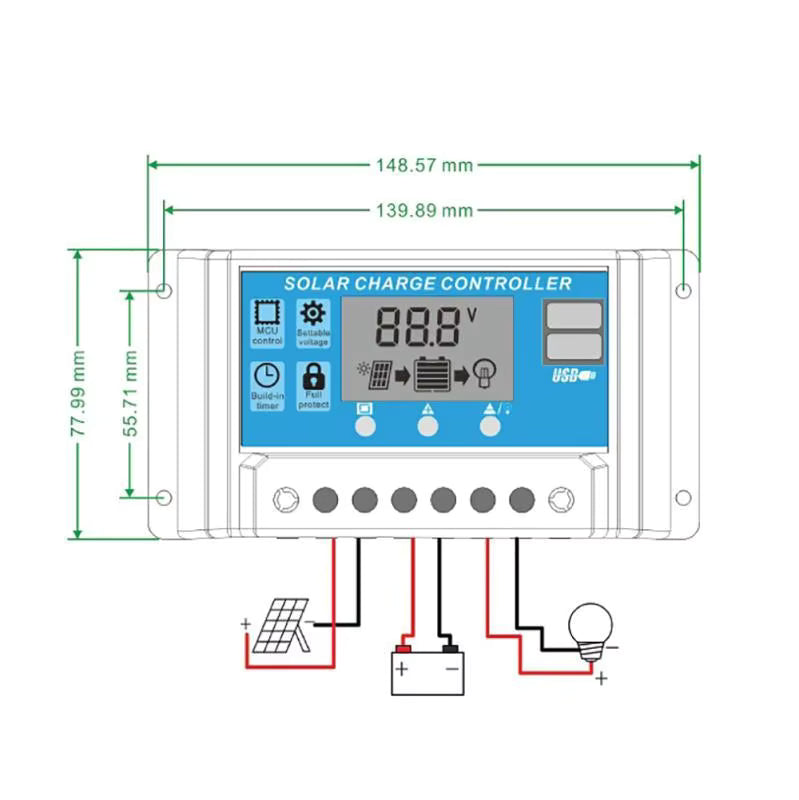

- System Connection: Connect the battery to the charge regulator - plus and minus. it will show 1, if it detects 12V battery, 2 if it detects 24V battery. Connect the Solar Panel module to the regulator - plus and minus.
